Quick Details

  • Standard: ASTM, BS, GB, JIS
  • Grade: steel coil
  • Thickness: 0.13-1.2mm
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: WZH
  • Model Number: SGCC/SGCH/SGHC/SGH340/DX51D
  • Type: Steel Coil
  • Technique: hot dipped
  • Surface Treatment: Galvanized
  • Application: Construction and Base Building Material
  • Special Use: High-strength Steel Plate
  • Width: 600-1250mm
  • Length: In Coil
  • STANDARD: GI galvanized galvalume aluminium zinc corrugated roofing steel coil
  • MATERIAL: Q195/SGCC/SGCH/SGHC/SGH340/DX51D
  • Certificate: ISO 9001:2000/SGS/BV
  • Zn: 50-275g/m2
  • Spangle: Regular/Small/Big/Zero
  • Steel Coil ID: 508mm/610mm
  • Coil Weight: 3-5 tons
  • MOQ: 25 Tons
  • Payment term: T/T, L/C
  • Hardness: 350-550

Packaging & Delivery

Packaging Details Packing: standard seaworthy packaging or according customers demands
Common package:
steel drum+steel coil+waterproof paper+steel sheet cover+seal+steel bank strap+galvanized edge protector+metal corner protector+shipping mark
Delivery Time With in 50 days after received your deposit

GI galvanized galvalume aluminium zinc corrugated roofing steel sheet and coil

Product Description

 -HDG: Hot dipped galvanized iron coil and iron sheet price

 -GL Coil / Anti-fingerprint GL coil

1) Introduction of hot dip galvanization steel



Hot-dip galvanization is a form of galvanization. It is the process of coating iron, steel or aluminium with a layer ofzinc by immersing the metal in a bath of molten zinc at a temperature of around 840 °F (449 °C). When exposed to the atmosphere, the pure zinc (Zn) reacts with oxygen (O2) to form zinc oxide (ZnO), which further reacts with carbon dioxide (CO2) to form zinc carbonate (ZnCO3), a usually dull grey, fairly strong material that stops further corrosion in many circumstances, protecting the steel below from the elements. Galvanized steel is widely used in applications wherecorrosion resistance is needed without the cost of stainless steel, and can be identified by the crystallization patterning on the surface (often called a "spangle").[1]



Galvanized steel can be welded; however, one must exercise caution around the resulting toxic zinc fumes. Galvanized steel is suitable for high-temperature applications of up to 392 °F (200 °C). The use of galvanized steel at temperatures above this will result in peeling of the zinc at the inter metallic layer. Electrogalvanized sheet steel is often used in automotive manufacturing to enhance the corrosion performance of exterior body panels; this is, however, a completely different process which tends to achieve lower coating thicknesses of zinc.



Like all other corrosion protection systems, galvanizing protects steel by acting as a barrier between steel and the atmosphere. However zinc is a more electronegative metal in comparison to steel, this is a unique characteristic for galvanizing which means that when a galvanized coating is damaged and steel is exposed to the atmosphere, zinc can continue to protect steel through galvanic corrosion(often within an annulus of 5 mm above which electron transfer rate decreases).



2) Specifications of  Galvanized Plain Sheets / Coils, Corrugation Sheets, Colour Coated Sheets

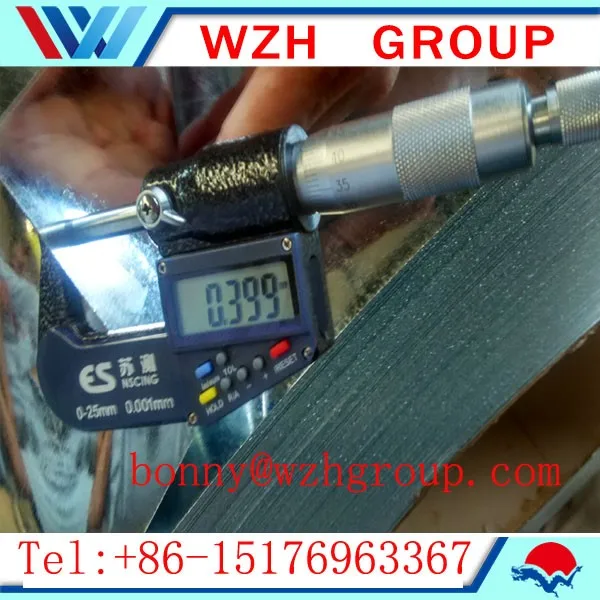

Thickness

0.13mm-1.2mm

Thickness tolerance

±0.02mm

Width

600--1500mm all available

Width tolerance

±2mm

Length

1000-5800mm or as to client require

Zinc coating

40g/m2-275g/m2

Types

Commercial / Drawing / Deep Drawing / Structural quality

Quality

Soft or hard quality

Standard

ASTM, AISI, DIN, GB,JIS

Material

SGCC, DX51D,DX52D, DX53D,SGCD , Q195, Q235, SGHC, DX54D, S350GD, S450GD, S550GD, etc

Spangle State

Regular spangle, small spangle, big spangle, non-spangle

Surface treatment

chromed / oiled/slightly oiled/ dry/ anti-fingerprint etc

Coil weight

3-5ton or as client requirement.

Coil ID:

508 /610mm

Packing

Export standard.

Min order

25 tons



3) Technical Data of  Galvanized Plain Sheets / Coils, Corrugation Sheets, Colour Coated Sheets



GI Coil/ Price Hot Dipped Galvanized Steel Coil/ zinc corrugated roofing sheet / Iron Sheet price



Mechanical Properties

Grade

Yield Strength MPa

Tensile Strength MPa

Elongation %

SGCC(DX51D+AZ)

≥205

≥270

≥22

SGCD(DX52D+AZ)

≥140

≥270

≥38

S250GD+AZ

≥250

≥330

≥19

S350GD+AZ

≥350

≥420

≥16





Chemical Composition

GRADE

C

Si

Mn

P

S

Ti

SGCC/DX51D+Z

≤0.10

≤0.50

≤0.60

≤0.10

≤0.030

≤0.020

DX52D+Z

≤0.10

≤0.50

≤0.60

≤0.10

≤0.030

≤0.020

SGCD/DX53D+Z

≤0.10

≤0.30

≤0.50

≤0.05

≤0.030

≤0.020

SGCE/DX54D+Z

≤0.10

≤0.30

≤0.30

≤0.03

≤0.020

≤0.020

DX56D+Z

≤0.10

≤0.30

≤0.30

≤0.03

≤0.020

≤0.020

Structural

≤0.20

≤0.60

≤1.70

≤0.10

≤0.045

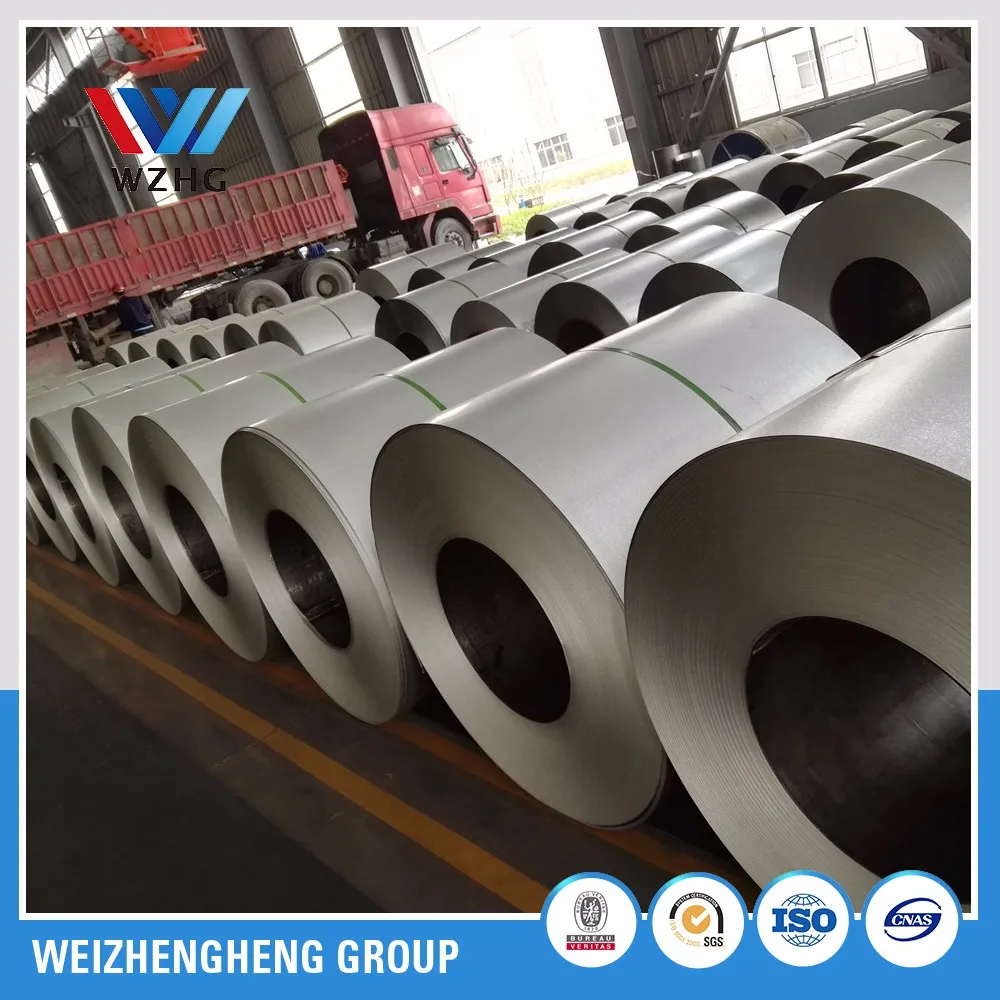

Galvanized steel coil /GI steel coil
Regular Spangle of the hot dipped galvanized steel coil /zinc coated steel coil
Galvalume steel coil G550 / Aluzinc steel coil

NEW!!

-Fingerprint resistant colorful galvanised aluminum iron coil/sheet

Gold , green and blue color

Packaging & Shipping

 1) Steel Coil Pakcage



2) Steel Coil Steel Sheets: Flat/Plain Sheets & Corrugated GI Sheets (IRON SHEET PRICE)



Corrugated steel sheet



Steel Sheet in Stock and Steel Sheet Package



Steel Sheet Loading in Container



Steel Coil reinforce and loading
