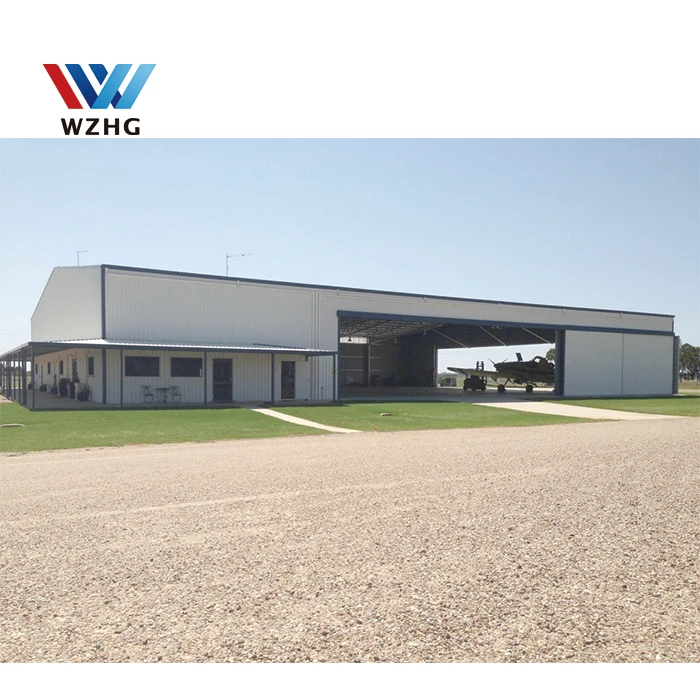

2020 prefabricated portal frame steel structure warehouse workshop hangar business hall poultry farm house cow farm house

FOB Reference Price:Get Latest Price
$1.00 - $19.00 / Square Meter | 300 Square Meter/Square Meters (Min. Order)
Dimensions:
steel structure
Lead Time:
Quantity(Square Meters) 1 - 1000 1001 - 3000 >3000
Est. Time(days) 25 35 Negotiable
Customization:
Customized logo (Min. Order: 1000 Square Meters)
Customized packaging (Min. Order: 1000 Square Meters)

More

Graphic customization (Min. Order: 1000 Square Meters) Less
Report Suspicious Activity
Overview
Quick Details
Standard:
AISI, ASTM, BS, DIN, GB, JIS
Grade:
Q345 and Q235 China National Standard
Place of Origin:
Hebei, China
Brand Name:
WZH
Model Number:
WZH-PSS-20-01
Type:
Light
Application:
Steel Fabricated House
Tolerance:
±1%
Processing Service:
Bending, Welding, Cutting, Punching
Name:
Prefabricated steel structure
Material:
Main steel frame, eg. H section steel, wall, door, windown etc.
Main frame:
Q345 Welded Steel 8 mm/10mm
Supporting system:
Angle, corss support, belt bar, brace, bolt
Roof and Wall:
Sandwich panel, corrugated color coated panel etc.
Door and Window:
Electric rolling door, Aluminum alloy window, PVC steel window etc.
Crane:
20 tons
Wind load:
33m/s
Snow load:
10 paf to 50 psf
Anti-seismic:
9 grade
Supply Ability
Supply Ability:
15000 Ton/Tons per Month Steel structure
Packaging & Delivery
Packaging Details
Normal bulk package
Steel pallet with wheels pacakge
Port
tianjin
Picture Example:
package-img
package-img
Lead Time :
Quantity(Square Meters) 1 - 1000 1001 - 3000 >3000
Est. Time(days) 25 35 To be negotiated
Video Description
Product Description

2020 prefabricated portal frame steel structure warehouse workshop airplan hangar poultry farm house cow farm house and steel structure bridge

A: Components of galvanized light steel structure

1)Wall panel: sandwich panel with color steel two sides and EPS foam filling width:1200mm 1k=1200
2)Column: C style steel, H shape
3)Floor beam: C style steel,200*40*2.0mm
4)Floor: light magnesium board (our patent)
5)Stair: metal
6)Roof truss: angle steel
7)Purling tube metal
8)Roof panel: corrugated sandwich panel with color steel two sides
9)Door: aluminum frame with panel same as wall, with lock


Remark: this list is for your reference but the elements can vary.

Technique Index
Earthquake resistante: 8 fission intensity
Wind pressure: <31m/s about 10 grade
Roofing snow load; <80kg/m2
Roofing live load: 50kg/m2

1. Economic : quick installed and saving the cost of construction
2. the period of delivery is very short and can installed very easily
3. Reliable quality: mainly produced in the factory and control the quality
4. big space: the max span of prefab steel structure can reach 80meters
5. antiseismic: because the weight is light
6. Flexible: can be dismantled and enlarged
7. Beautiful appearance: can use different colors
8. Long lifespan: can be used more than 30 years

B: The advantages of light steel structure

1)Economic : quick installed and saving the cost of construction
2)Reliable quality: mainly produced in the factory and control the quality
3)big space: the max span of prefab steel structure can reach 80meters
4)antiseismic: because the weight is light
5)Beautiful appearance: can use different colors
6)Long lifespan: can be used more than 50 years

C: If you need us to design the light steel building for you, we need to know the following:

1. rain load

2. live load

3.snow load

4.wind load
5.whether using the crane 6. length,wide,height

D :Features

Attractive design- -the whole house looks beautiful and elegant. The inner, outer walls and the roof boarding all use the color steel sandwich panel, the material is polystyrene foam.
Light weight and convenient in shipping.

Easy to assemble and dismantle: the house can be rebuilt for dozens of times. The assembling only requires simple tools: plugs and screw.
Firm structure- the house adopts steel frame structure ans sandwich panels.
Our houses are completely waterproof.
The house can be customized. The roof, wall, door, windows can be chosen by the customer.
Durable--the steel frame parts are all processed with anti-corrosion coating and can be used for as long as 20 years.

E :Components

1) Wall panel: sandwich panel with color steel two sides and EPS foam filling
     width:1200mm 1k=1200
2) Column: C style steel, H shape
3) Floor beam: C style steel,200*40*2.0mm
4) Floor: light magnesium board (our patent)
5) Stair: metal
6) Roof truss: angle steel
7) Purling tube metal
8) Roof panel: corrugated sandwich panel with color steel two sides and EPS foam filling
9) Wave height: 35mm
10) Trim of tile: color steel sheet
11) Door: aluminum frame with panel same as wall, with lock
12) Rust-proof way of building: painted or GI.
Remark: this list is for your reference but the elements can vary.

C:Steel structure warehouse

Specifications
1)Size:MOQ is 10m2, width X length X eave height, roof slope
2)Span: 9-180m,type:Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors!
3)Height: 3-10m
4)Slope: 1/20, 1/10,1/5,1/3
5)column distance: 6-9m
6) Base:Cement and steel foundation bolts
7) Column and beam:Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable
8) Bracing: X or V or other type bracing made from angle, round pipe, etc
9) C or z purlin:Size from C120~C320, Z100~Z200
10) Roof and wall panel:Single colorfull corrugated steel sheet0.2 ~1.2mm thick, such as YX25-207-828 or sandwich panel :sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, YX40-320-960
11)Accessories:Semi-transparent skylight belts, Ventilators, down pipe, outer gutter, etc
We are glad to bulid steel structre as your given drawing.If you need we design for you, pls supply us the following parameter together with detail size:
Design Parameters
1)Live load on roof(KN/M2)
2)Wind speed(KM/H)
3)Snow load (KG/M2) if have
4)Earthquake load if have
5)Crane (if have) ,Crane span, crane lift height, max lift capacity
6)Doors and windows: dimension, quantity, position
7)The materials on the roof and the wall
8)Crane need or not. if yes, please tell me the max lifting weight and max lifting height.
9) If you have other requirements,please also inform us.
10) It is better if you have your own drawings. please send them to me.
Detailed Images

Our professional design engineer team can use modern design softwarehouse, such as AutoCAD, PKPM, 3D3S, SAP2000, TSSD, TEKLA Structure, 3DS Max, to provide you with full design and details.
We can do complex industrial, commercial, residential buildings like, office mansion, shopping mall, supermarket, warehouse, hotels, poultry farm, workshop, 4S shop etc

A. Main Steel: Q345, Q235, Q345B, Q235B Etc
B. Colomn & Beam: Welded or hot rolled H section
C. Connection Method of Steel Structure: Welding Connection or Bolt Connection
D. Wall & Roof: EPS, Rockwool, Glasswool, PU sandwich panels; Or corrugated Steel Sheet
E. Door: Rolling Door or Sliding Door
F. Window: UPVC window or Aluminum Alloy Window
G. Surface: Hot dipped galvanized Or grey color painted
H. Crane: 5MT, 10MT, 15MT and more

Steel Structure design and detailing

We have professional and normalized design team, through AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc, we can design complex industrial building like office building, supermarket, shopping mall, apartment, retail shop, workshop, warehouse, chicken shed and so on. Professional working team have been the basement for us to devote ourselves to build a world brand "WZHGROUP".

In order to supply the most suitable drawing and best price for you, our design team need to confirm some information with you, as below:
1 Location (where will it be built? ) _____country, city_____
2 Size: Length*width*height _____mm*_____mm*_____mm
3 Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. Snow thickness)_____kn/m2, _____mm
5 Anti-earthquake grade_____
6 Brick wall needed or not. If yes, 1.2m high or 1.5m high?
7 Thermal insulation requirement. If yes, EPS/fiberglass wool/rock wool/PU sandwich panels will be suggested; If not, the metal steel sheets will be OK. The cost of the latter will be much lower than the former.
8 Door quantity & size _____units, _____(width)mm*_____(height)mm
9 Window quantity & size _____units, _____(width)mm*_____(height)mm
10 Crane needed or not. If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m

Other Contections

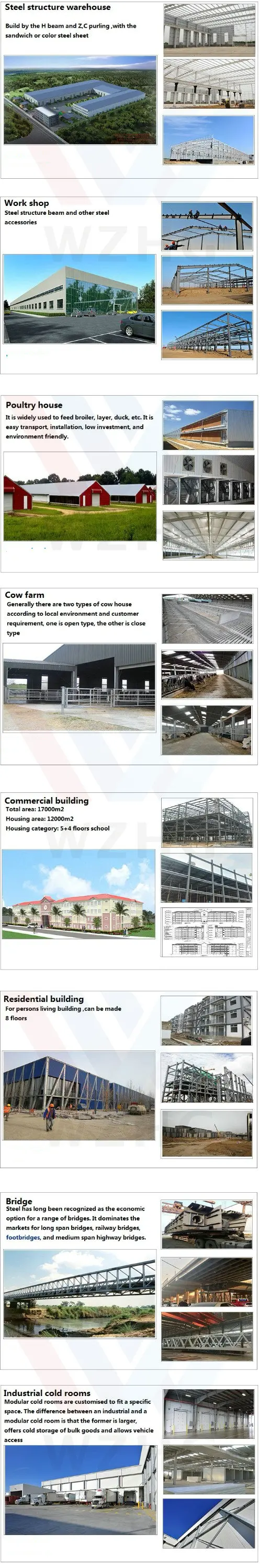

Case Show of the prefabricated steel structure warehouse workshop etc.

Install Information
Our Company

FAQ

1. You are manufacture factory or trading company?
We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.
2. Is your price competitive compared with other companies?
Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
3. Can you send engineers or whole team to install my project?
We will give detailed installation drawings and video for free. We can send engineers as installation director or a team upon request.
4. Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
5. Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5 star hotel.
6. What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 30 days after receiving deposit.
7. How can you get a quotation for your projects?
You can contact us by email, phone, Alibaba TM, WhatsApp, Skype, Viber and so on 24*7 and you will get reply within 8 hours.
